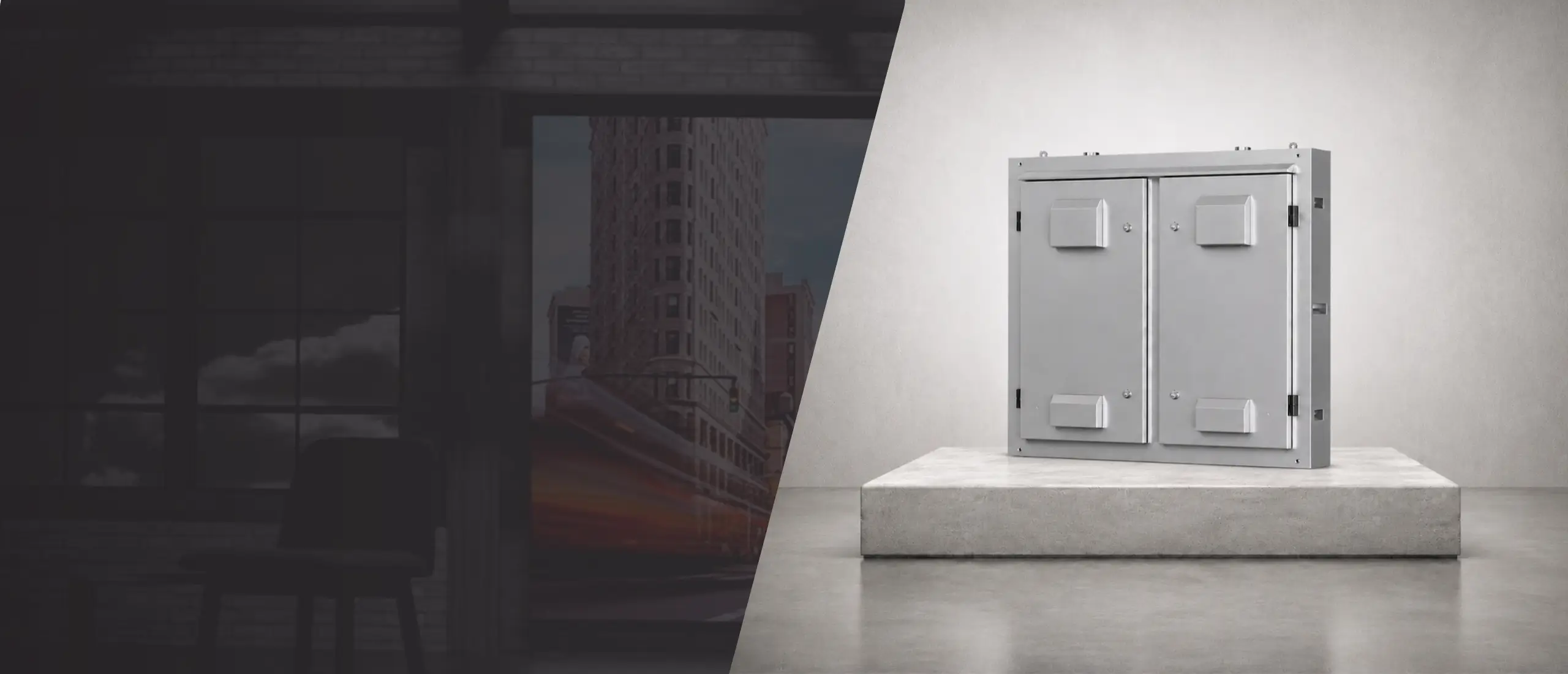

ONYX IV-Series
Professional-grade indoor fixed LED displays built for permanent installations. Fine pixel pitch from P2 to P5 — sharp, reliable, and certified for broadcast studios, corporate venues, events, and public spaces worldwide.
ONYX IV-Series
Professional-grade indoor fixed LED displays built for permanent installations. Fine pixel pitch from P2 to P5 — sharp, reliable, and certified for broadcast studios, corporate venues, events, and public spaces worldwide.
ONYX IV-Series — Key Specifications
Click the hotspot dots on the display to explore key features. Specifications apply across all pixel pitch variants.
Image Quality
3000:1 contrast ratio, 14-bit color depth — accurate colors at every pixel pitch
Wide Viewing
V140°/H140° — consistent image quality from any seat or angle
Zero Flicker
1920/3840Hz refresh rate — flicker-free for broadcast, camera, and live production
Modular & Customizable
Available in 4 standard cabinet sizes (960×960, 960×480, 1280×960, 640×960mm) plus custom configurations per module. Black LEDs with precisely positioned power supply keep heat out and colors accurate.
Built for Long-Term Installs
Safe intelligent wall-mount with multi-functional handling design. Engineered for demanding permanent installations — structurally robust with minimal maintenance requirements over years of operation.
Extends Display Lifespan
High-performance ventilation fans with purpose-built airflow structure prevent heat buildup inside the cabinet. Cooler running temperature means longer LED lifespan and lower total cost of ownership.
Factory-Calibrated Color Consistency
Embedded receiver with factory-calibrated 14-bit color ensures every cabinet in a multi-panel installation matches perfectly — critical for large video walls where uniformity is visible to the audience.
Image Quality
3000:1 contrast ratio, 14-bit color depth — accurate colors at every pixel pitch
Wide Viewing
V140°/H140° — consistent image quality from any seat or angle
Zero Flicker
1920/3840Hz refresh rate — flicker-free for broadcast, camera, and live production
Easy Maintenance
Front & rear service access — minimal downtime, no need to remove from wall
Globally Certified
CE, EMC, FCC, IP45 — ready for regulated markets and permanent installations
Power Efficient
450–650W/m², AC 100–240V — runs on standard commercial power worldwide
The ONYX IV-Series is trusted by AV integrators and procurement teams across a wide range of professional environments worldwide.
Concerts, festivals, corporate events
TV studios, XR stages, virtual production
Command centers, meeting rooms, lobbies
Storefronts, malls, showrooms
Scoreboards, perimeter, fascia displays
FIDS, wayfinding, public information
Lecture halls, auditoriums, campuses
Churches, mosques, large congregations
Real-world installations across industries. Contact us to discuss your project.
Live Concert Stage Installation
Large-scale LED wall for a touring concert production. Custom cabinet configuration for fast assembly and disassembly between venues.
Corporate Headquarters Video Wall
Fixed indoor video wall for a multinational corporate headquarters. Fine pixel pitch for close-range clarity in boardroom and lobby environments.
Retail Flagship Store Display
Eye-catching LED display at a high-traffic retail flagship. Modular cabinet design fitted precisely to custom wall dimensions.
The ONYX IV-Series is trusted by AV integrators and procurement teams across a wide range of professional environments worldwide.
Deployed across broadcast studios, corporate venues, retail spaces, and events worldwide — every installation backed by our technical team.
Every inquiry is reviewed by a technical sales specialist — not a bot. You get a real quote with real lead times, within one business day.
Standard size or fully custom configurations — cabinet dimensions and power supply layout tailored to your installation requirements.
CE, EMC, and FCC certified across all ONYX IV-Series variants. Full certification documentation available on request for your compliance team.
What pixel pitch is right for my installation?
The ONYX IV-Series is available in P2, P2.5, P3, P4, and P5. P2 and P2.5 are ideal for close-viewing environments such as boardrooms and broadcast studios. P3 and P4 are suited for events and staging. P5 is best for larger venues where viewers are further from the screen. Contact us with your venue dimensions for a specific recommendation.
What cabinet sizes are available for the ONYX IV-Series?
What certifications does the ONYX IV-Series carry?
All ONYX IV-Series variants are CE, EMC, and FCC certified with an IP45 protection rating. SMD diode technology is used throughout. Certification documents are available on request.
What are the power supply and operating requirements?
The ONYX IV-Series operates on AC 100–240V across all variants. Panel power consumption is 450–650W per square meter. Operating humidity is 0–80% non-condensing. The power supply is specifically positioned inside the cabinet to reduce heat generation and prevent thermal buildup.
Where can I download the full ONYX IV-Series specification sheet?
The full specification sheet covers all variants — P2, P2.5, P3, P4, and P5 — including display properties, cabinet dimensions, electrical data, environmental ratings, and certifications.
How do I get a quote or technical support?
Submit your inquiry using the form below or email us at info@iledscreen.com. Include your environment, screen size, pixel pitch preference, and quantity for a faster, more accurate response. Our Shenzhen team responds within one business day.
