ONYX IU-Series
Ultra HD indoor fixed LED display with COB protection for dust and moisture resistance. Fine pixel pitch from P1.25 to P2.5 — deep blacks, vibrant color, and seamless splicing for retail, government, corporate, broadcast, and education environments.
ONYX IU-Series
Ultra HD indoor fixed LED display with COB protection for dust and moisture resistance. Fine pixel pitch from P1.25 to P2.5 — deep blacks, vibrant color, and seamless splicing for retail, government, corporate, broadcast, and education environments.
ONYX IU-Series — Key Specifications
Click the hotspot dots on the display to explore key features. Specifications apply across all pixel pitch variants.
Image Quality
6000:1 contrast, 16-bit color depth — deep blacks and vibrant color accuracy
Ultra-Wide Viewing
160° viewing angle — consistent image quality from any seat or angle
Zero Flicker
1920/3840Hz refresh rate — flicker-free for broadcast, camera, and live production
Seamless Splicing

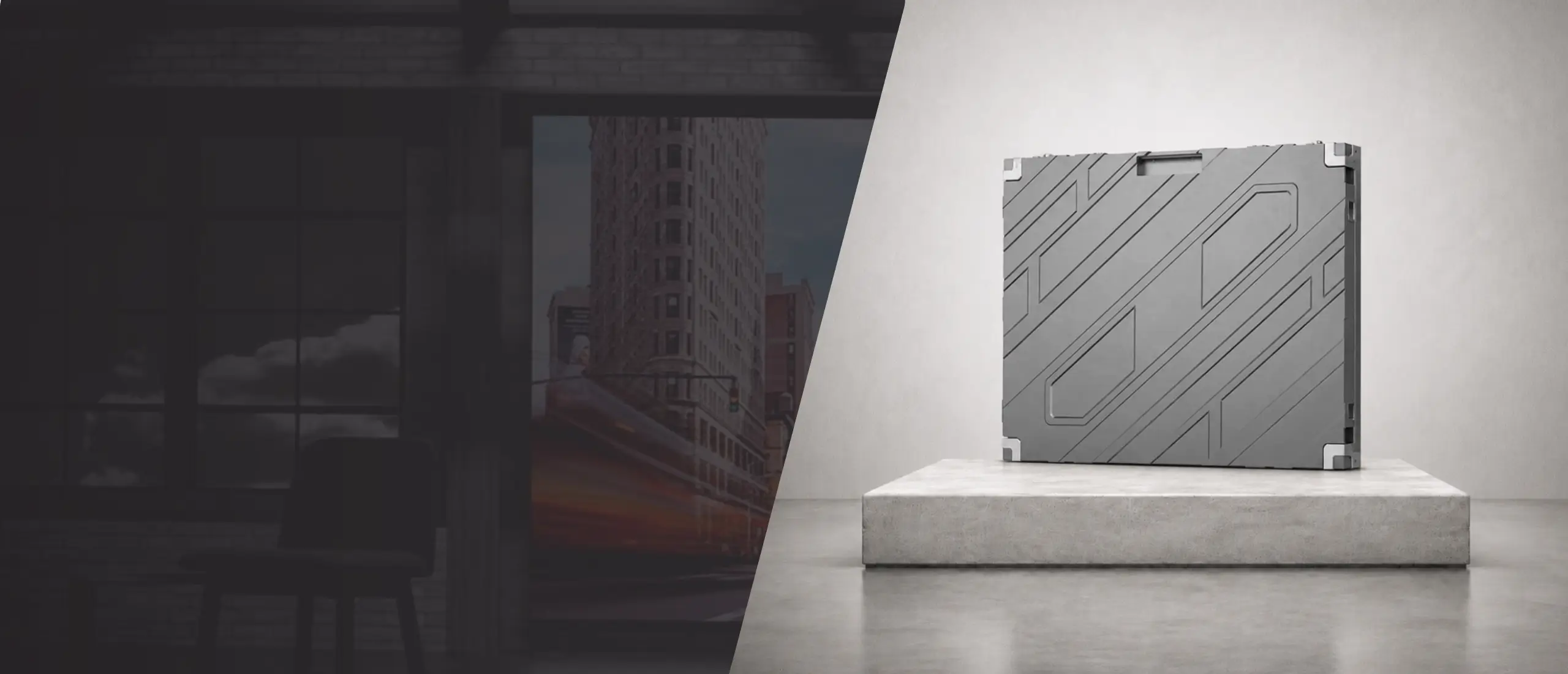

Each COB module connects seamlessly for large-format indoor installations. Cabinet size 640×480mm with <0.2mm tolerance ensures zero visible seams across any video wall size.
Plug & Play Handling
Lightweight at 7.5kg per cabinet. Wall mounting and stacking support with simple front-access installation — no specialist tools or rear access required.
Superb Visual Impact
6000:1 contrast ratio with deep black levels and vibrant color reproduction. 16-bit color depth and 900 nits brightness optimized for controlled indoor lighting conditions.
COB Dust & Moisture Protection
COB coating protects LEDs from dust, moisture, and physical contact — extending display lifespan in high-traffic environments like retail floors, lobbies, and interactive installations.
Image Quality
6000:1 contrast, 16-bit color depth — deep blacks and vibrant color accuracy
Ultra-Wide Viewing
160° viewing angle — consistent image quality from any seat or angle
Zero Flicker
1920/3840Hz refresh rate — flicker-free for broadcast, camera, and live production
Front-Only Service
Frontend access only — saves time and labor, no rear wall removal needed
Globally Certified
CE, EMC, FCC, IP45 — ready for regulated markets and permanent installations
COB Protected
COB coated, <0.2mm tolerance — dust, moisture and touch resistant
The ONYX IU-Series Ultra HD display is trusted by AV integrators and procurement teams across a wide range of professional environments worldwide.
TV studios, XR stages, virtual production sets
Executive meeting rooms, lobbies, command centers
Flagship stores, luxury showrooms, brand activations
Operations centers, public sector, security monitoring
Lecture halls, university auditoriums, smart classrooms
Hospital command centers, diagnostic briefing rooms
Trading floors, financial operations centers
High-end hotel lobbies, luxury conference centers
Real-world installations across industries. Contact us to discuss your project.
Broadcast Studio Video Wall
Ultra HD video wall installed in a professional TV studio. Fine pixel pitch delivers camera-ready image quality with zero moiré effect under studio lighting.
Corporate Headquarters Video Wall
Fixed indoor video wall for a multinational corporate headquarters. Fine pixel pitch for close-range clarity in boardroom and lobby environments.
Retail Flagship Store Display
Eye-catching LED display at a high-traffic retail flagship. Modular cabinet design fitted precisely to custom wall dimensions.
10,000+ screens installed across 30+ countries. Founded in 2018 with a single focus — fine pixel pitch LED displays done right.
Deployed across broadcast studios, corporate venues, retail spaces, and events worldwide — every installation backed by our technical team.
Every inquiry is reviewed by a technical sales specialist — not a bot. You get a real quote with real lead times, within one business day.
Standard size or fully custom configurations — cabinet dimensions and power supply layout tailored to your installation requirements.
CE, EMC, and FCC certified across all ONYX IV-Series variants. Full certification documentation available on request for your compliance team.
What pixel pitch should I choose for the ONYX IU-Series?
The ONYX IU-Series is available in P1.25, P1.53, P1.86, P2, and P2.5. P1.25 is ideal for control rooms and broadcast studios where viewers are within 1–2 meters. P1.53 and P1.86 suit corporate lobbies and retail at 2–3 meters. P2 and P2.5 work well for larger rooms where ultra-fine detail is still required. Contact us with your venue dimensions for a specific recommendation.
What are the cabinet dimensions for the ONYX IU-Series?
Standard cabinet size is 640×480mm (2.1ft × 1.57ft) weighing 7.5kg per cabinet. The lightweight design supports wall mounting and stacking for both small and large-format installations. Custom configurations are available on requirements.
What certifications does the ONYX IU-Series carry?
All ONYX IU-Series variants are CE, EMC, and FCC certified with an IP45 protection rating. COB diode technology is used throughout — providing dust and moisture resistance for demanding environments. Certification documents are available on request.
What are the power requirements for the ONYX IU-Series?
The ONYX IU-Series operates on AC 100–240V across all variants. Panel power consumption is 580W per cabinet. Operating humidity is 0–70% non-condensing. The power supply supports standard commercial installations worldwide.
How do I get a quote or technical support for the ONYX IU-Series?
Submit your inquiry using the form below or email us at info@iledscreen.com. Include your environment, screen size, pixel pitch preference, and quantity for a faster, more accurate response. Our Shenzhen team responds within one business day.
